EdgeLogix1860 combines the industry PC and PLC(Programmable Logic Controller) technology to control any machine.Robotics as well as PLC and motion are combined in a single controller, creating many benefits for the integration of robots,AGV,or AMR.

EdgeLogix1860,An Embedded High performace and Robust Real-Time Robotic Controller. It combines the industry PC and PLC(Programmable Logic Controller) technology to control any machine.Robotics as well as PLC and motion are integrated in a single controller, creating many benefits for the integration of robots with Comprehensive I/O for connecting a wide range of devices.

It is a complete, next-generation control solution for AGVs,AMRs and mobile robots. This application-independent, scalable solution is easy to integrate with existing vehicle designs as well as host systems and material handling solutions.

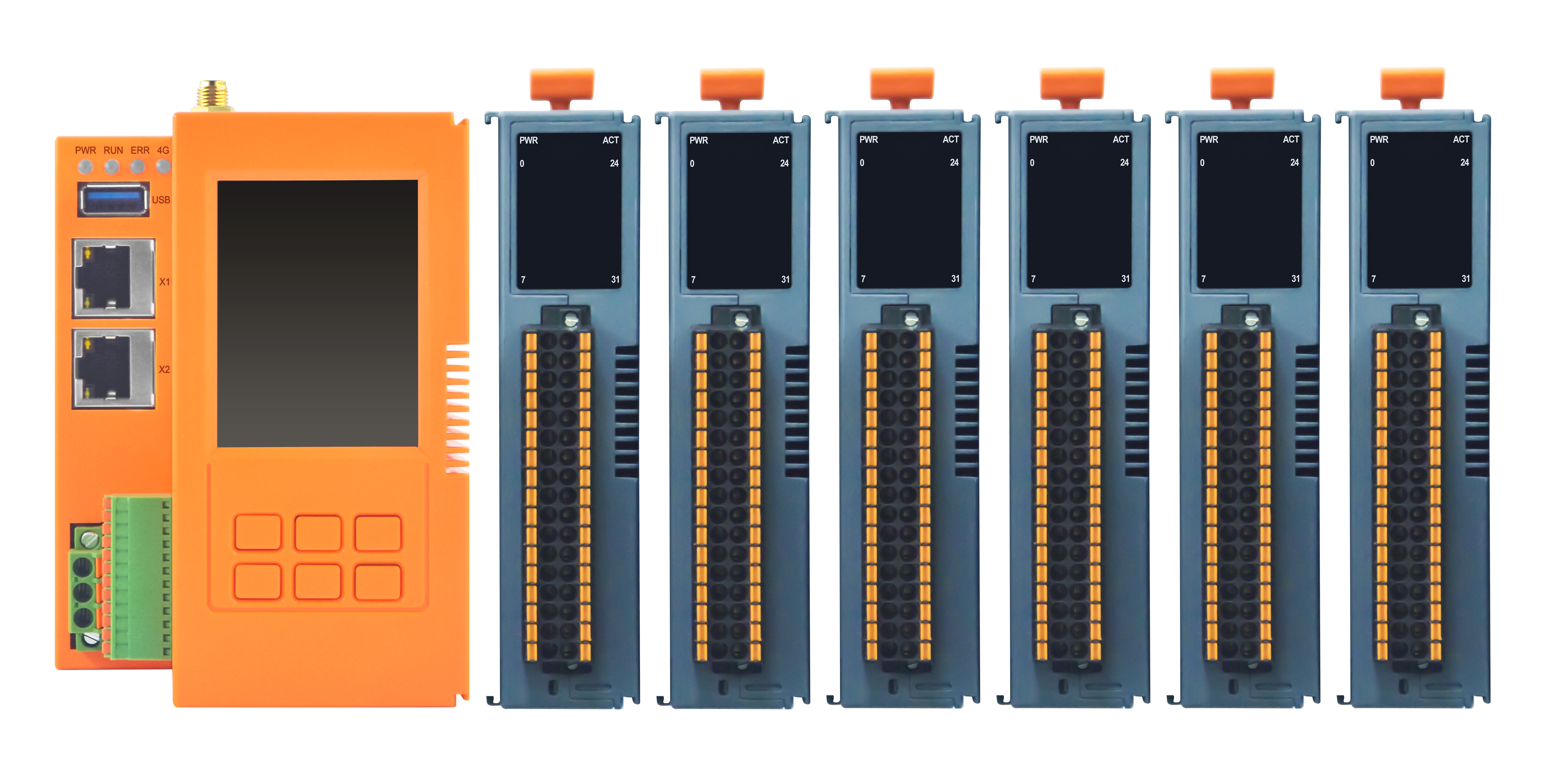

EdgeLogix is a modular control and I/O system for mobile machinery and unmanned system. The comprehensive set of standardized components is perfect for implementing flexible automation concepts. The heart of the EdgeLogix  control system is a powerful Intel  processor and multifunction I/O channels. Standard features include interfaces for CAN, Ethernet and the real-time EtherCAT  bus system.
All products in the EdgeLogix family are designed for use under harsh conditions. They can handle housing temperatures from -20°C to +60°C and are resistant to harsh environmental factors of shock and vibration, mobile, wide-temp and Electro-Magnetic environment.

  • Simplified system design
  • Faster commissioning
  • Cabling requirements are greatly reduced
  • Interfaces between PLCmotion and robot control are eliminated
  • Perfectly synchronized system clock and program sequences
  • Full-fledged machine control with PLCopen Motion function blocks and standard modules
  • One single standardized programming interface for PLC, motion and robotics

Basics:

  • CPU:Intel 11th i7/i5/i3
  • Co-Processor:real-time coprocesor
  • Memory: On-board 8GB/16GB DDR4
  • Storage :M.2 SSD 256GB/512GB/1TB
  • Wireless:5G+4G with dual sim card and Wi-Fi6
  • Display:DP

High speed interfaces:

  • Gigabyte ethernet :4
  • USB 3.2 port A:2
  • SMA ANT. :6
  • Local bus:1

Legacy interfaces:

  • RS485: 4 Isolted
  • CAN: 2 channels with CAN-FD
  • MFO : 10,include 6 PWM ,POWER DO up to 5A
  • MFI :10 , include 2 encoder input
