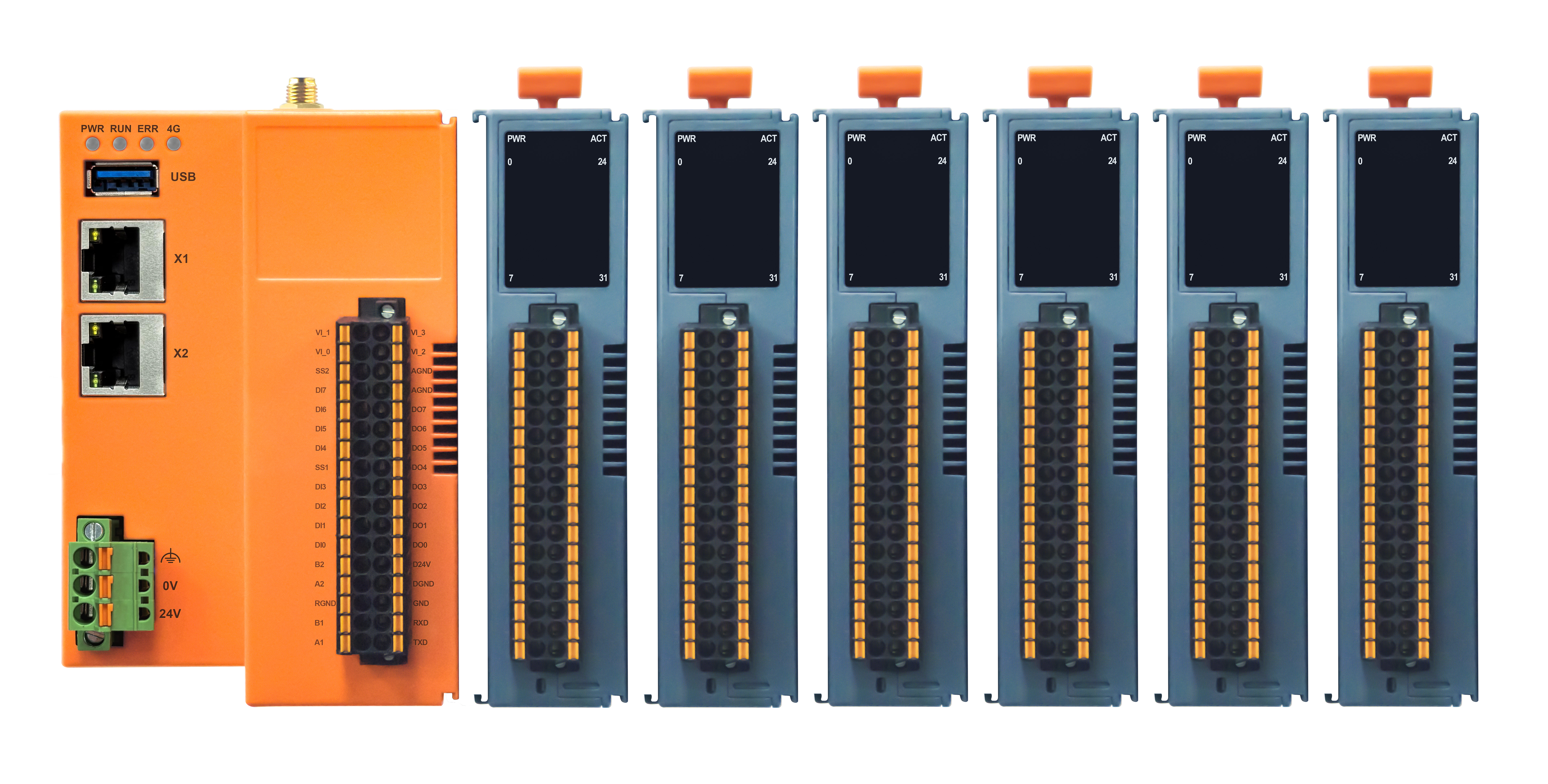

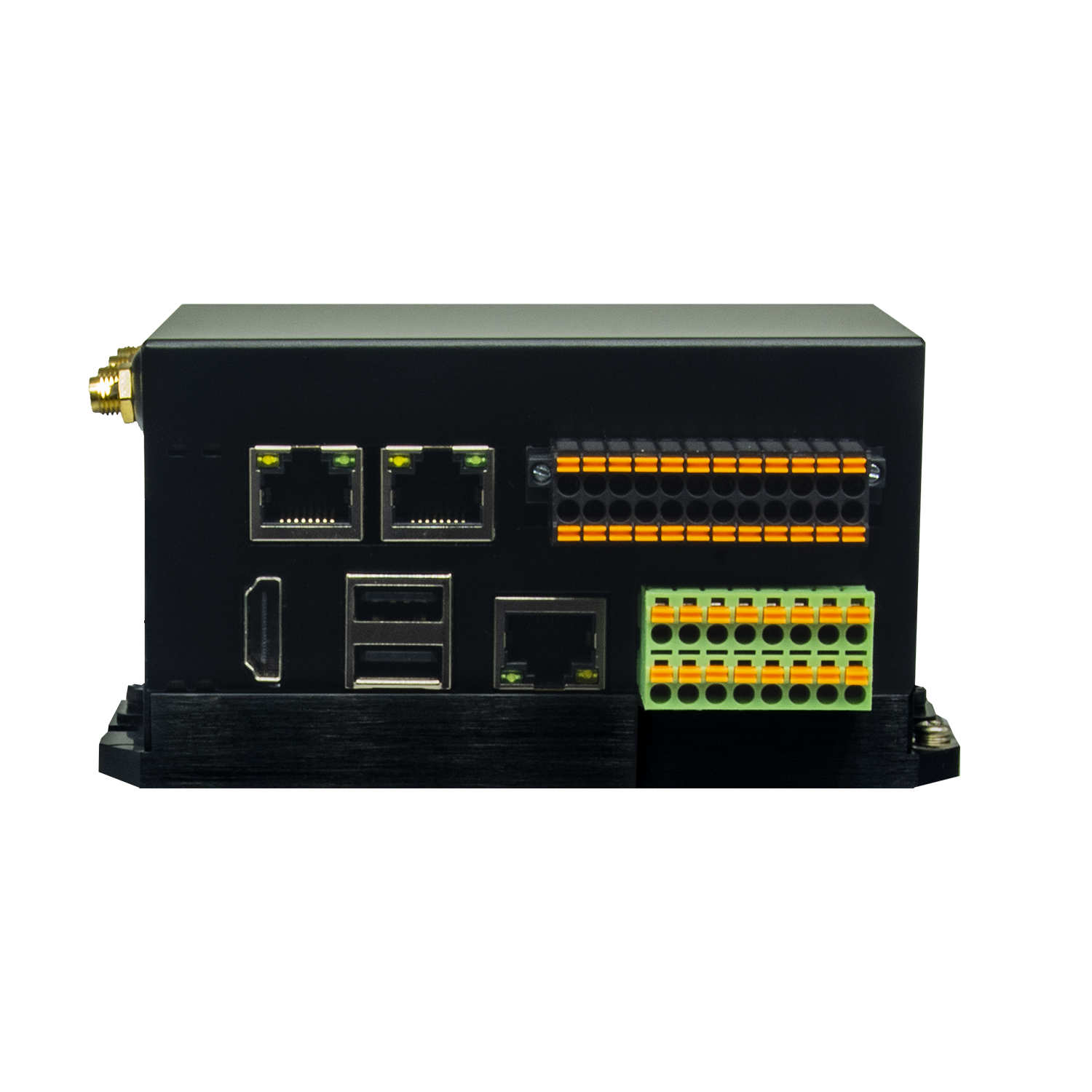

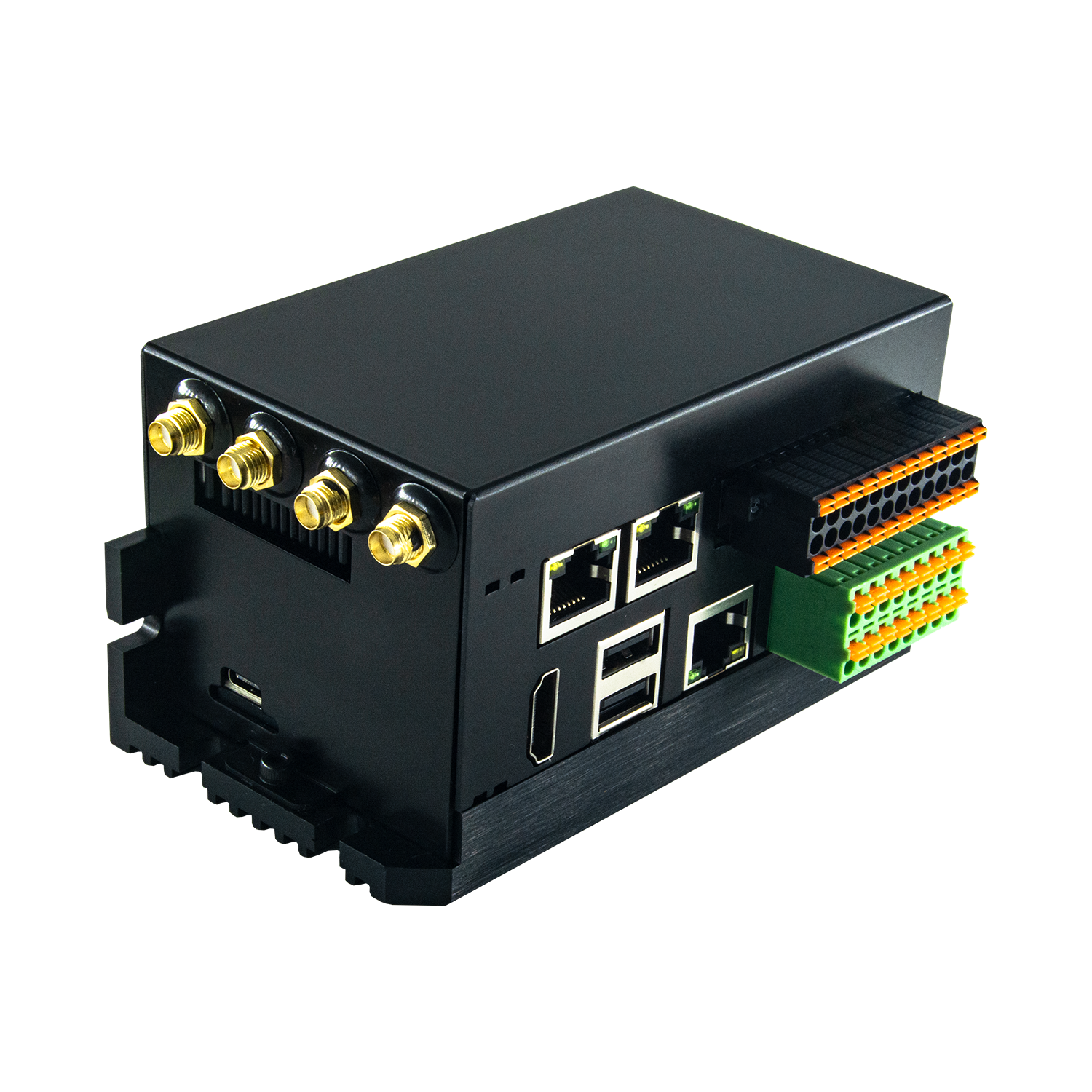

A space-saving Industrial controller with flexible field bus options ideally suited for implementing advanced Industry 4.0 solutions. moreover,wide variety of onboard interfaces enables the networking of machine or plant sections in the cloud or other networks.
Overview

EdgeBox-RPI4P is a ideal addition to a standard fieldbus and expands the possibilities of conventional control systems. Simply connect it, configure it and you're done. HMI, Ethernet and USB are already standard equipment in EdgeBox-RPI4P. Networking and connecting USB devices are therefore possible at no additional cost. In addition, each controller can have a 4G/LTE interface with sim card for WWAN communication. Although most requirements are covered by the standard equipment of the controller, there is a modular second customized board for functional extensions and additional interface modules,include Ethercat interface for hard real-time communication. Moreover,there is a local bus for modular expansion,such as AI,AO DO,PWM or motion control. The EdgeBox-RPI4P controller can be delivered with a customized logo instead of the OpenEmbed logo. For additionalnformation about the exact ordering procedure, please contact the sales.

Note: Product images are for illustration purposes only and maybe don't match what is currently being shipped.

Features and benefits

  • Raspberry Pi Computer Module 4(CM4) 1.5GHZ
  • Dual-Band Frequency 2.4GHz/5GHz WiFi
  • Mini PCe socket for 4G/LTE communication
  • Isolated DI&DO terminal
  • Isolated RS-485 interface
  • Built in Backup power ideal for mission-critical applications
  • Full aluminium enclosure direct contact with the Pi's SoC
  • 3 gigabyte ethernet ports
  • 35 mm DIN and wall mount

Applications

  • IoT gateway
  • Robot controller
  • Edge computing controller
  • Software define PLC(Programmable Logic controller)
  • Industry controller
  • Building automation and control system
Specifications

CPU

  • Broadcom BCM2711,Quad-core A72 running up to 1.5 GHz

Memory

  • Options for 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM

Storage

  • On board emmc 8GB to 32GB

Wireless​

  • 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac

  • Bluetooth 5.0, BLE

  • Mini PCIe socket with SIM card for 4G/LTE WWAN

  • M.2 socket socket for 5G WWAN(optional)

Video Interface​

  • HDMI 2.0a (up to 4kp60 supported)

Interfaces

  • 1 × RJ45 ethernet port support 10/100M/1000M
  • 2 x USB 2.0 Port
  • 1 x HDMI 2.0
  • 2× DI
  • 2x DO
  • 1 x isolated RS485
  • 1 x RS232
  • 1 x mini-PCIe socket with sim card support
  • dual bands 802.11ac Wi-Fi(optional)
  • Wide power supply support 10.8-36V DC

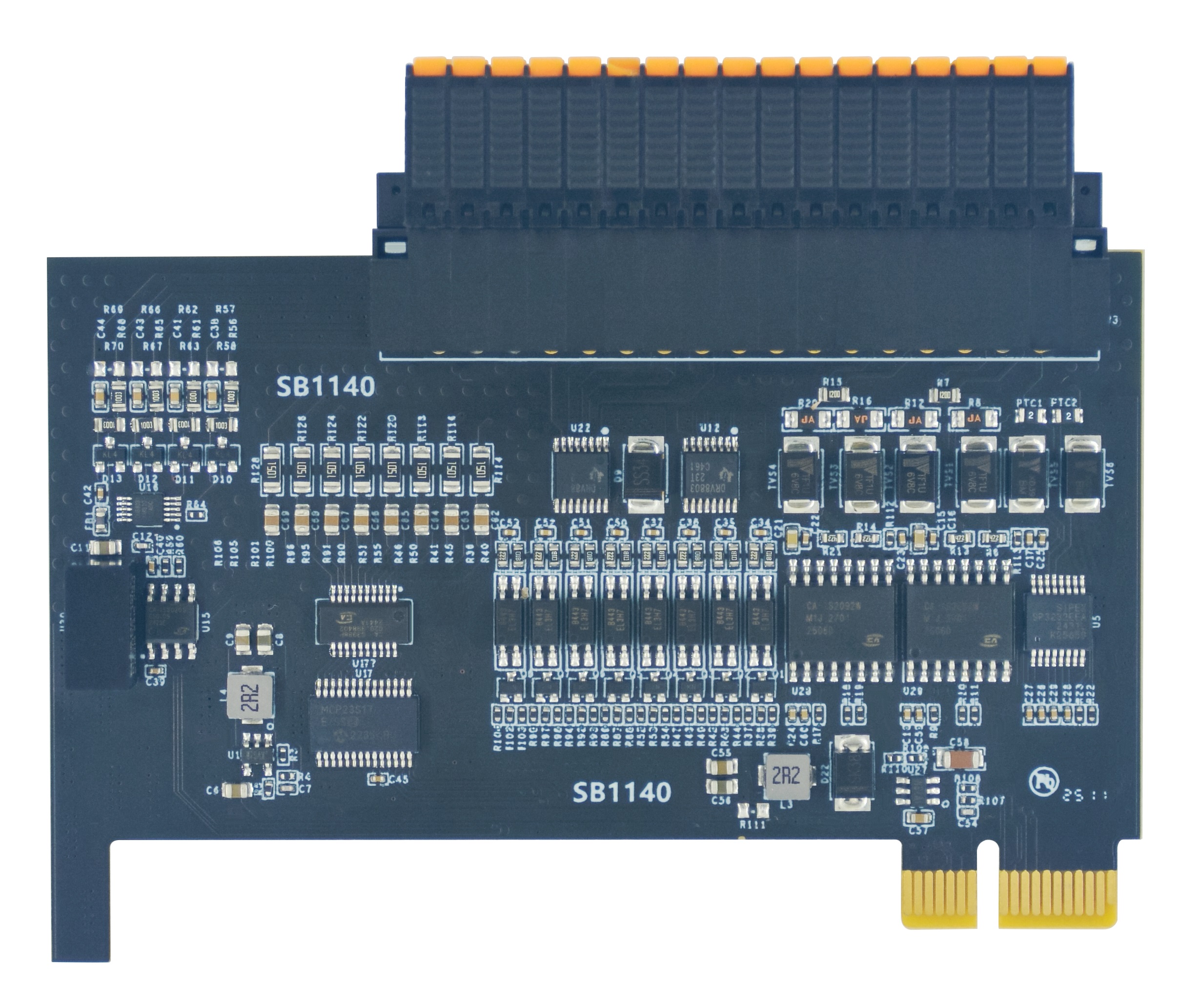

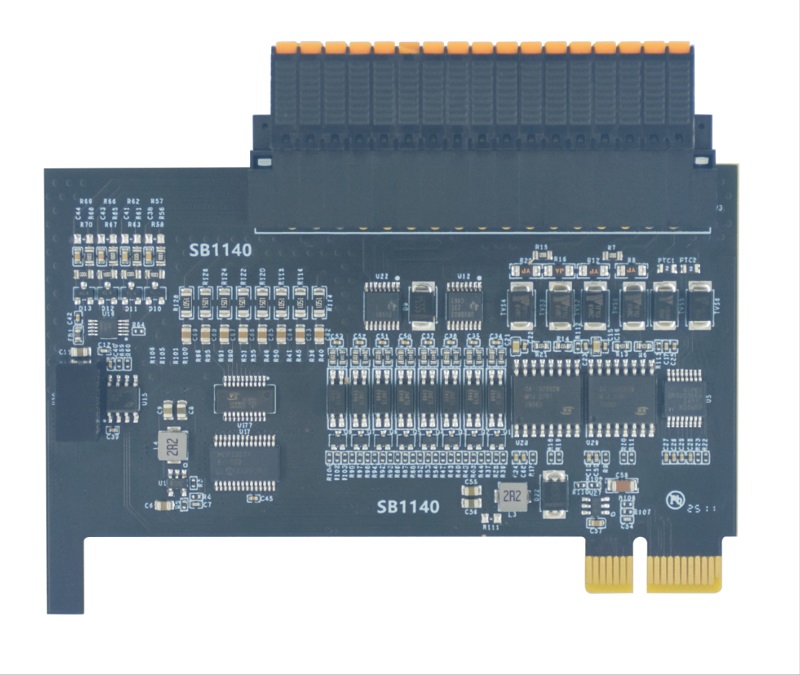

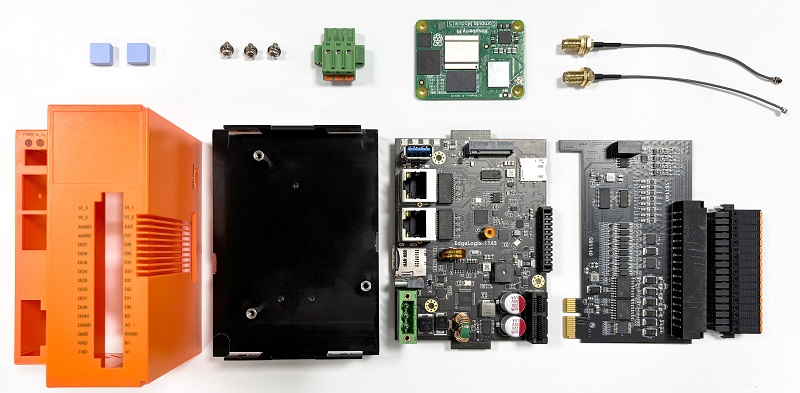

Modular second customized board

  • DIO+ADC+DAC+local bus
  • DIO+ADC+DAC+local bus +Gigabyte Ethernet x2
  • Customized

Extra features

  • built in UPS with supercap for safe shutdown(optional)
  • RTC
  • Stand alone Watch dog timer
  • Atecc608a(optional)

Graphics and multimedia

  • 3D GPU: Supports  OpenGL ES 2.0, 1.1; H.264,MPEG4 decode(1080p30);H.264 encode(1080p30)

Operating temperature

  • -20° to 60°

Dimensions

  • 124x68x76mm

Certifications

  • CE
  • FCC

Software

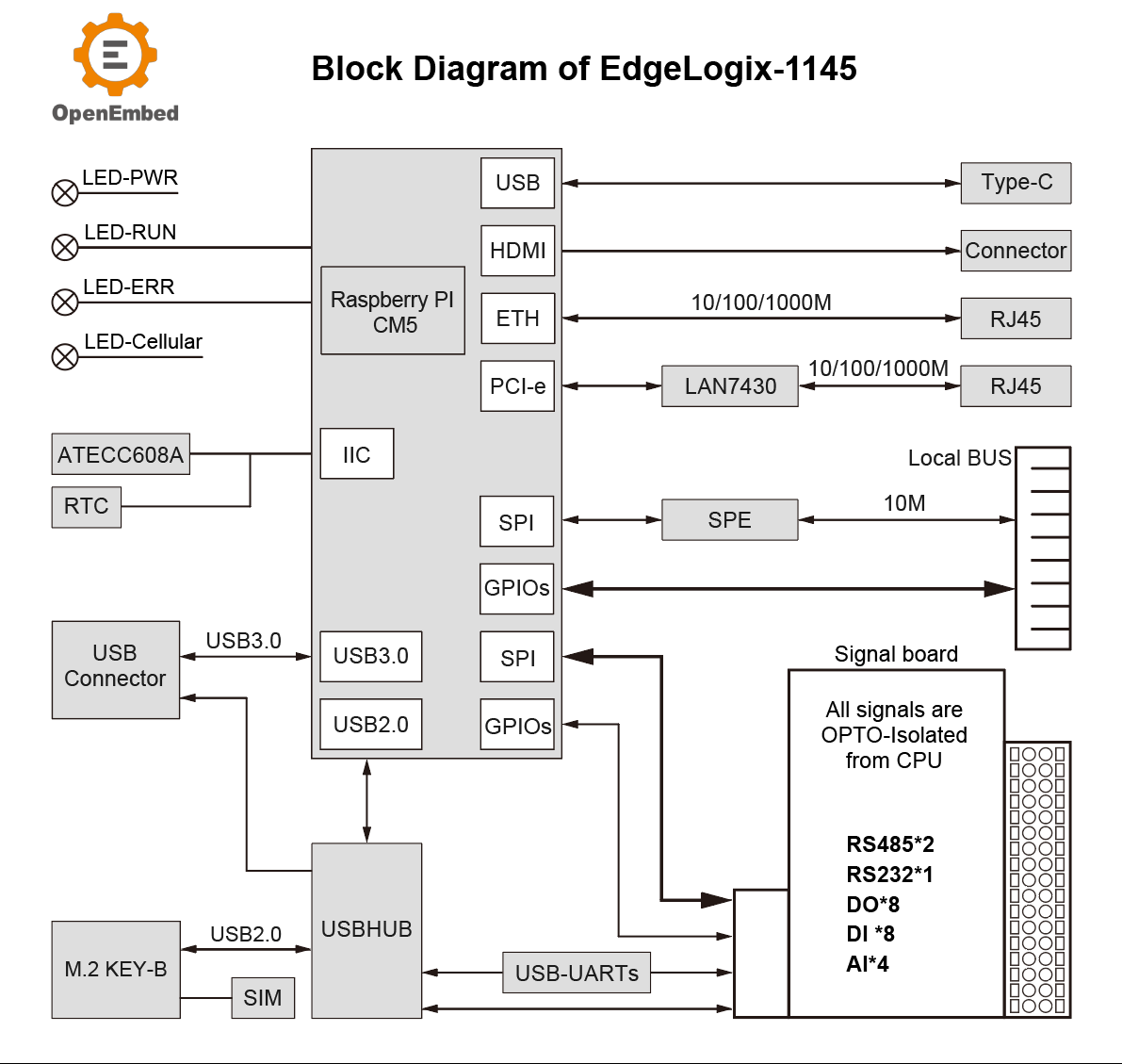

Block Diagram
Pricing and Ordering

All prices below are specified in USD.

Prices are periodically updated according to variations in component costs. Prices are subject to change without advance notice.


P/N template: EdgeBox-RPI4P-A-1G8GN-B-CAN-NET

All SKU include:

A: hardware edition

1G8GN: memory 1GB ,eMMC 8GB and NO WI-FI

B: local BUS

NET: extra 2 gigabyte ethernet ports and LocalBUS

Configuration P/N:            EdgeBox-RPI4P-A-1G8GN-B                                  PRICE: $219

Configuration P/N:            EdgeBox-RPI4P-A-1G832GN-B                              PRICE: $249

Configuration P/N:            EdgeBox-RPI4P-A-1G8GN-B-NET                          PRICE: $349

Configuration P/N:            EdgeBox-RPI4P-A-4G32G-WIFI-B-NET                  PRICE: $399



​===================================================================================

Note:

Customizations accepted,please contact  sales@OpenEmbed.com for other configrations,

some maybe need MOQ.

All SKUs include:

RTC : real-time clock

WDT : watch dog timer

DO: 6 channels isolated DOs

DI: 6 channels isolated DIs

AI: 3 channels isolated AIs with 0-5V or 4-20ma input

AI: 1 channel  isolated AOs with 0-5V output

Optional:

Encryp : Encryption chip ATECC608A

Wi-Fi : Dual-Band Frequency 2.4GHz/5GHz WiFi

UPS: suppercap for safe shutdown


Other Quantity Orders:

Pricing is specified for 100-unit orders.Multiply the unit price by the factor to calculate the price for another quantity :

Qty Factor
10K contact us
1K 0.85
500 0.9
100 1.0
10 1.1
1 1.2
