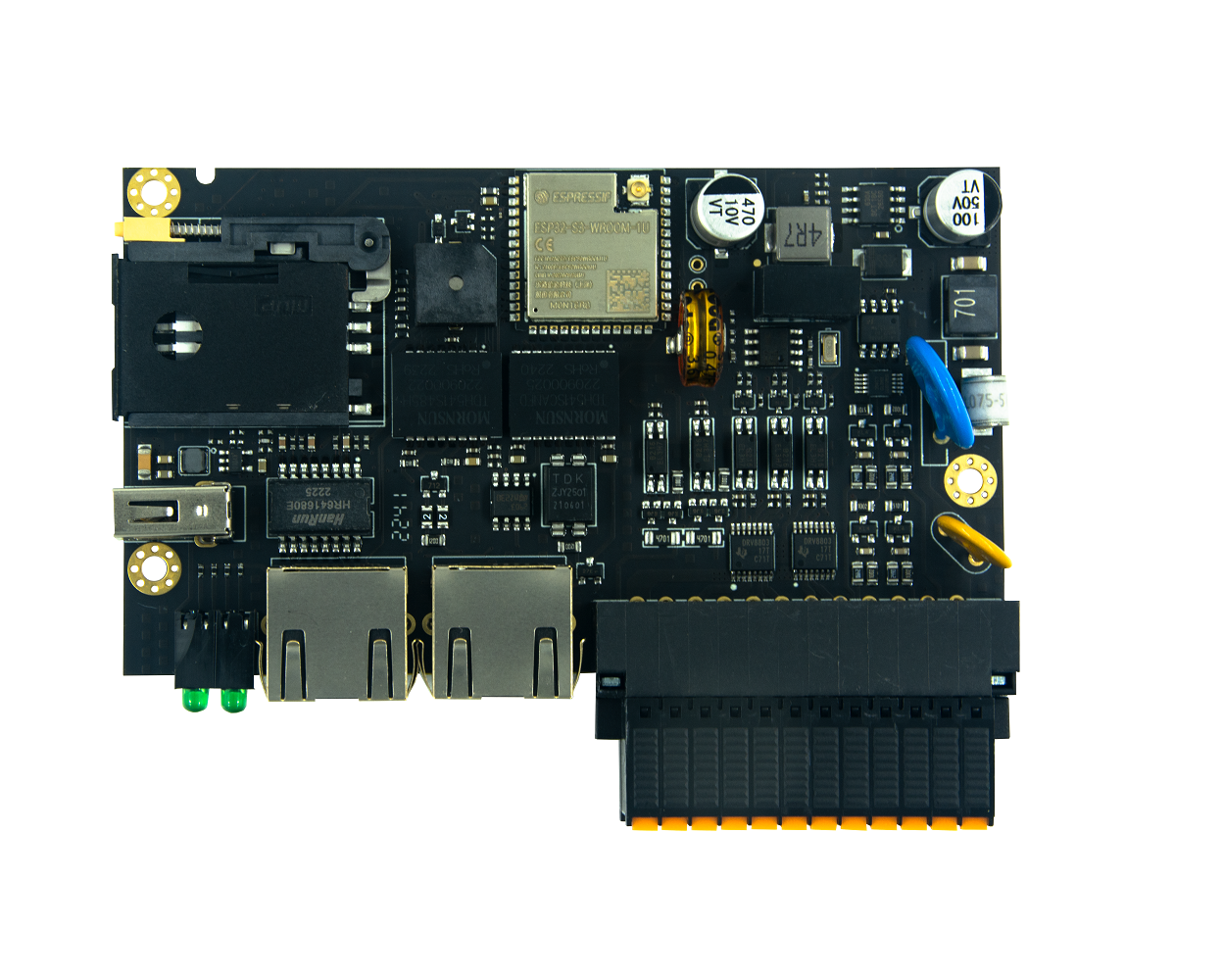

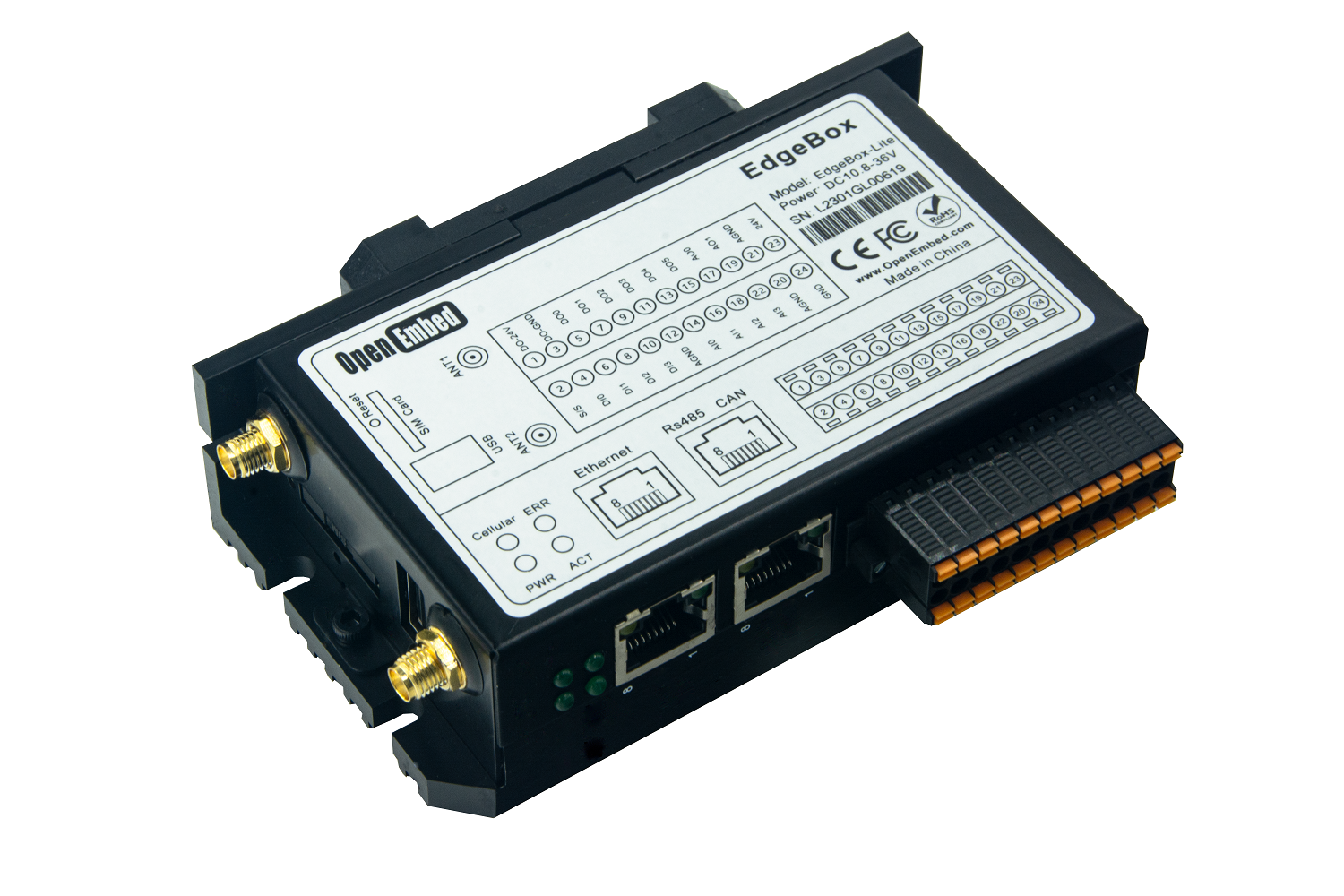

It is an ESP32 based cost-effective controller that provides the functions required for a variety of field automation applications. The EdgeBox Hybrid lite monitors, measures, and controls equipment in a remote environment. It is ideal for applications requiring flow computation; Proportional, Integral, and Derivative (PID) control loops; logic sequencing control; and a gateway with flexible wireless and field sensors extension.

Features and benefits

• Rugged, reduced-maintenance hardware.
• High isolation, surge, and short circuit protection.
• Wide operating temperature (–20 C to +60C).
• Wide power supply from 10.8 to 36 V DC.
• Built-in Cellular radio with 4G/LTE support.
• Open architecture  support custom programming.
• Fieldbus for data exchange with  PLCs.
• IEC 61131-3 compliant programs support(under developing).
