EdgeLogix 1200
EdgeLogix 1200
EdgeLogix, modular,open-archiecture edge controllers manage complex interfaces across assets and devices or into the cloud directly, with legacy and next generation industry control system.

EdgeLogix modular,open-archiecture edge controllers manage complex interfaces across assets and devices or  into the cloud directly, with legacy and next generation industry control system. EdgeLogix 1200 provides performance and scalability for a wide range of industrial applications, including motion control, networking, IO and IIoT in a compact  model, as while as the advantages of traditional IEC-61131-3 programming with the flexibility of Linux.

The EdgeLogix 1200 Series covers all the functions required of logic computing, including easy operation and compatibility with a variety of control and measurement applications. This flexible device for ultra-reliable measurement and control of industry. users the customized logic and control needed to meet application requirements. Industry-leading configurability and programmability fulfill standard to complex requirements while secure, built-in flow measurement calculations make it easier than ever to prove compliance. In addition, cloud-enabled functionality for licensing simplifies day-to-day operations. Digitally transform your operation by streamlining complex processes with the agile, intuitive EdgeLogix . This new controller is also part of OpenEmbed's next-generation EdgeLogix Series measurement and control platform that offers a common set of configuration tools, to expedite setup and facilitate commonly performed tasks.



Features:

  • High Performacne CPU
  • Robust system design
  • Display for commissioning and diagnostics
  • Flexbility of local BUS extension
  • 35mm DIN Rail support in industrial environments
  • Built-in IT connectivity: DHCP/DNS, OPC UA and Web service

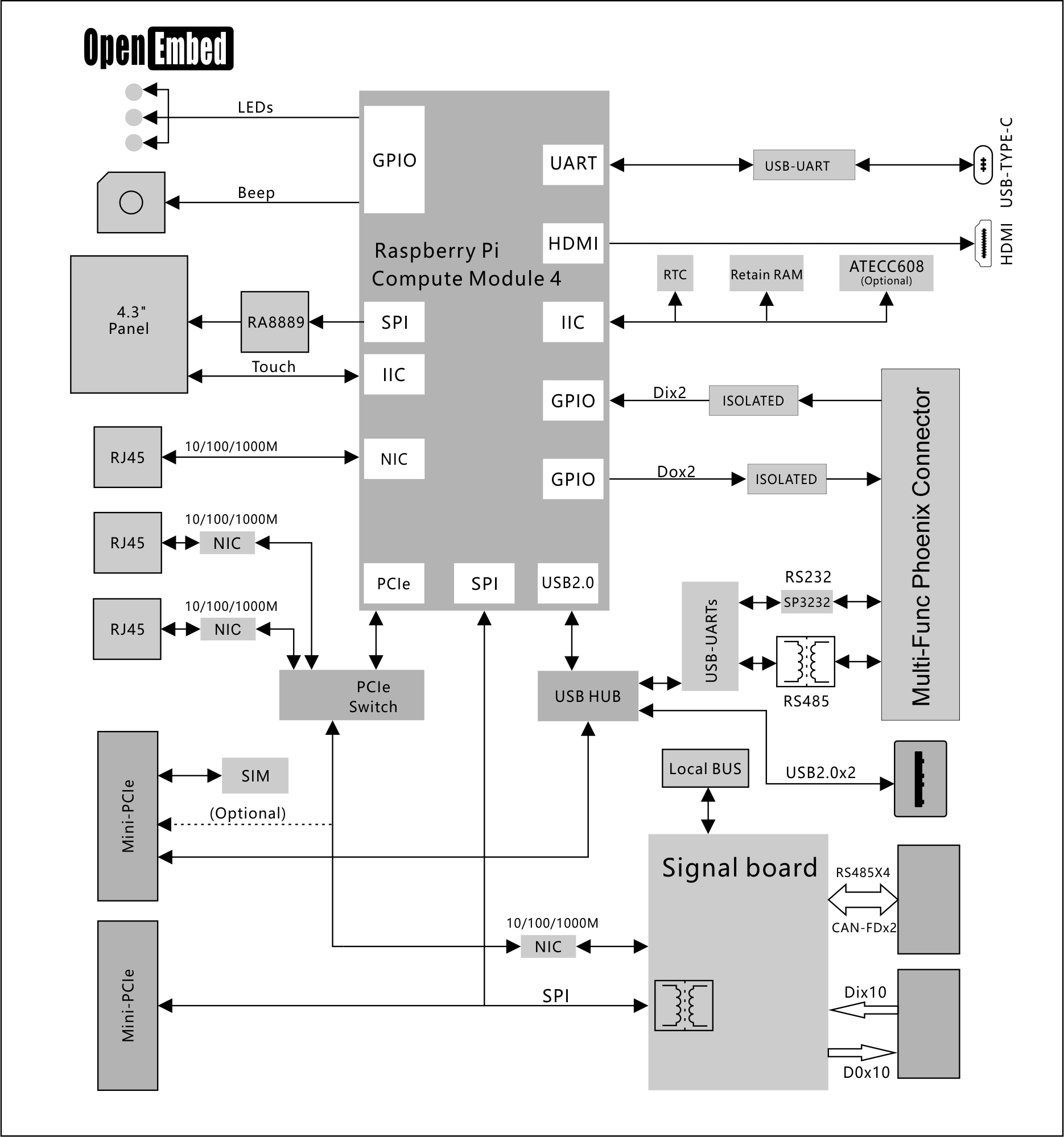

CPU

  • EdgeLogix1240:Raspberry PI CM4, CM4104032 default

Memory

  • 4GB DDR
  • 32GB EMMC

Interfaces

  • 3× RJ45 ethernet port support 10/100M/1000M
  • USB 2.0 port x2
  • 1 x Local BUS port for I/O module extension
  • 1 x isolated RS485
  • 1 x RS232
  • 1 x mini-PCIe socket with sim card support
  • 1 x mini-PCIe socket with  SPI support
  • 4 x antennas,one for Wi-Fi, the other for wireless add-on card
  • 2.4 Ghz b/g/n Wi-Fi
  • 3x dual color LED indicators
  • 4.3' LCD panel
  • 10.8-36V DC power supply

Signal board:

  • DO*10
  • DI *10
  • 4 x  RS485
  • 2 x RS232
  • 2 x CAN BUS with FD capacity

All signals are isolated from main CPU


Dimensions

  • 140x124x76 mm

Software

  • Open source Raspberry PI OS
  • C/C++,Golang SDK
  • Modbus tcp and Modbus RTU
  • MQTT
  • VPN

Complicances

CE and FCC  under processing

EdgeLogix1240_UM_EN.pdf                                 V1.0                                   20-12-2022

All prices below are specified in USD.

Prices are periodically updated according to variations in component costs. Prices are subject to change without advance notice.


P/N template: EdgeLogix 1240A        PRICE: $399

Where:

A: hardware edition

​===================================================================================

Note:  Customizations accepted,please contact  sales@OpenEmbed.com for other configrations.




Other Quantity Orders:

Pricing is specified for 100-unit orders.Multiply the unit price by the factor to calculate the price for another quantity :

Qty Factor
10K contact us
1K 0.85
500 0.9
100 1.0
10 1.2
1 1.5
