SOM1046
SOM1046
The SOM1046 is a high-performance system-on-module built around NXP’s highly successful Layerscape® communications processor.It provides a compact and cost effective solution for networking and industrial applications.

    The SOM1046 with integrated packet processing acceleration and high speed peripherals including a wide range of networking, storage, security and industrial applications to a  system-on-module.It integrates four 64-bit ARM® Cortex-A72 cores with  high-performance peripherals. The impressive performance of more than 32,000 CoreMarks®, paired with 10 Gb Ethernet, PCIe Gen. 3, SATA 3.0, USB 3.0 and QSPI interfaces provides a perfect combination for a range of enterprise and service provider networking, storage, security and industrial applications. The LS1046A and LS1026A with Ethernet PHYs , PMIC, Storagen and ecc DDR4 memory are available in a 95 x 95 mm form fact.  The processor LS1046 are  pin-compatible with the LS1023A, LS1043A and LS1088A SoCs providing unprecedented performance scaling for 64-bit ARM processors, ranging from dual-A53 through octal-A53 to quad-A72 core processors, while maintaining hardware and software compatibility. This flexible scaling enables customers to leverage their existing software and reuse hardware design for faster time-to-market.

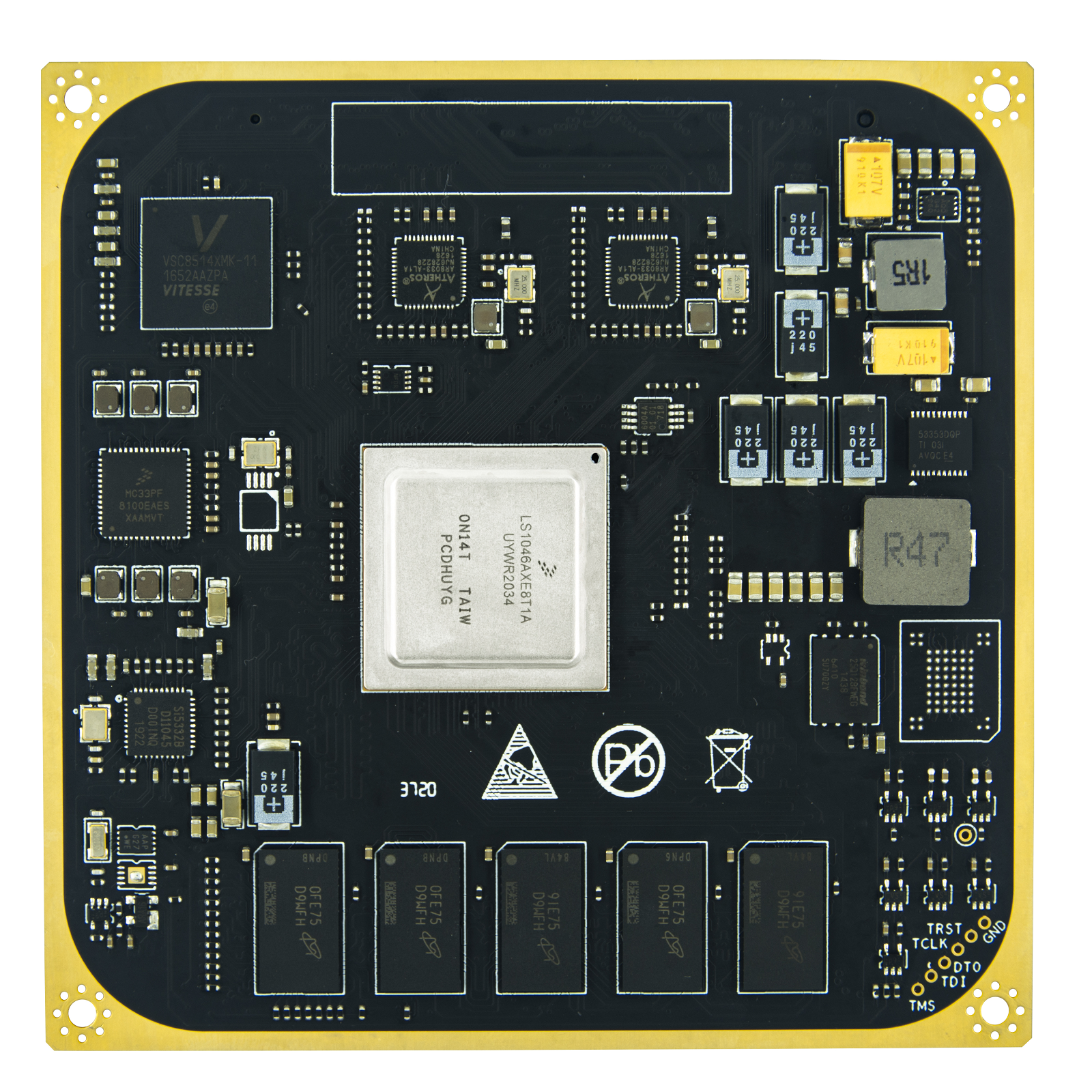

 Note: Product images are for illustration purposes only and maybe don't match what is currently being shipped.

Features:

  • Arm® Cortex®-A72 cores  with packet processing acceleration
  • 64 bit DDR4 with ECC
  • Encryption chip ATECC608A
  • 2x 10 Gbit Ethernet
  • High speed communication include PCIe,USB 3.0 and SATA
  • On board 6x Gagabyte Ethernet PHYs
  • Extended temperature range
  • Small form factor 95x95 mm

CPU

  • QUAD Cortex®-A53 cores running at 1800 MHz
    • 32-Kbyte L1 Instruction cache
    • 48-Kbyte L1 Data cache
    • 2048-Kbyte Level 2 cache

DPAA

  •  Packet parsing, classification, and distribution (FMan)
  •  Queue management for scheduling, packet sequencing, and congestion management (QMan)
  •  Hardware buffer management for buffer allocation and de-allocation (BMan)
  •  Cryptography acceleration (SEC)

Interfaces

  •  Up to two XFI (10 GbE) interface
  •  Up to five SGMII interface supporting 1000 Mbps
  •  Up to three SGMII interface supporting 2500 Mbps
  •  2 x10/100/1000M Ethernet with on board Ethernet PHY AR8033
  •  4 x10/100/1000M Ethernet with on board QSGMII PHY
  •  3 x PCI express 3.0 controllers, one supporting x4 operation
  •  One serial ATA (SATA 3.0) controller
  •  2 x  high-speed USB 3.0 controllers with integrated PHY
  •  One enhanced secure digital host controller (SDXC/eMMC)
  •  One serial peripheral interface (SPI) controller• Four I2C controllers
  •  Two 16550 compliant DUARTs and six low-power UARTS (LPUART)

Complicances

Software

All prices blow are specified in USD.

Prices are periodically updated according to variations in component costs. Prices are subject to change without advance notice.


P/N template: SOM1046-AE-4GE-512M-Q16M-Encryp

Where:

A: hardware edition

I: industry grade(-40 - 85 dgree),E: consumer grade(0-70 dgree)

4GE: 4GB DDR4 with ECC

512M: 512MB NAND Flash

Q16M: QSPI FLASH 16MB or other size

Encryp: Encryption chip ATECC608A


Minimal configuration P/N:     SOM1046-AE-4GE-512M-Q16M-Encryp   PRICE: $299

Full  configuration P/N:            SOM1046-AE-8GE-512M-Q16M-Encryp   PRICE: $349

Industry  configuration P/N:    SOM1046-AI-8GE-512M-Q16M-Encryp    PRICE: $399




Other Quantity Orders:

Pricing is specified for 100-unit orders.Multiply the unit price by the factor to calculate the price for another quantity :

Qty Factor
10K contact us
1K 0.85
500 0.9
100 1.0
10 1.2
1 1.5
