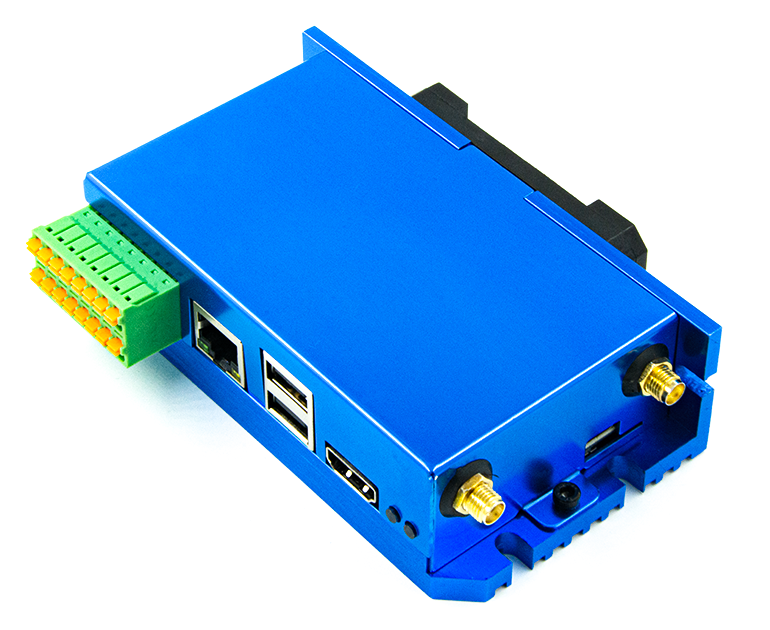

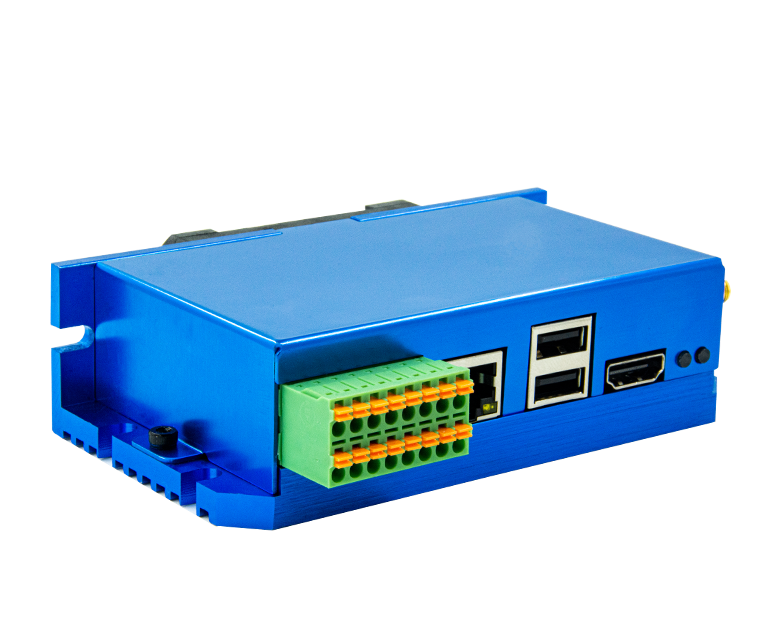

EdgeBox-Scale
EdgeBox-Scale
Scale is a flexible edge computing architecture.The dual or quad Cortex-A53 cores are dedicated to open-source operating systems while the Cortex-M4 core is dedicated to real-time and low-power tasks.

To make the Industrial IoT and Industry 4.0 a reality, manufacturers must interconnect operations technology (OT), such as manufacturing and automation systems, to their information technology (IT), including inventory, logistics, and customer relationship management systems. EdgeBox is designed to enable the flow of information between these two domains.It will increase efficiency and reduce product delivery times.

Features:

  • NXP i.MX8M Mini   Based
  • State-of-the-art Aluminium chassis for Harsh environment
  • Integrated passive heatsink
  • Built-in mini PCIe socket with  USB,PCIe,SPI,and UART support
  • SMA antenna holes x2
  • Modbus over RS485 or Ethernet support
  • CAN-FD inteface up to 5 Mbit/s for distributed I/O or motion control
  • Encryption chip ATECC608A
  • Hardware Watchdog
  • RTC with Super Capacitor
  • Wide power supply from 10.8 to 36V DC
  • 35mm DIN Rail support

NOTE: letters in italic mode are differences from EdgeBox-RPI

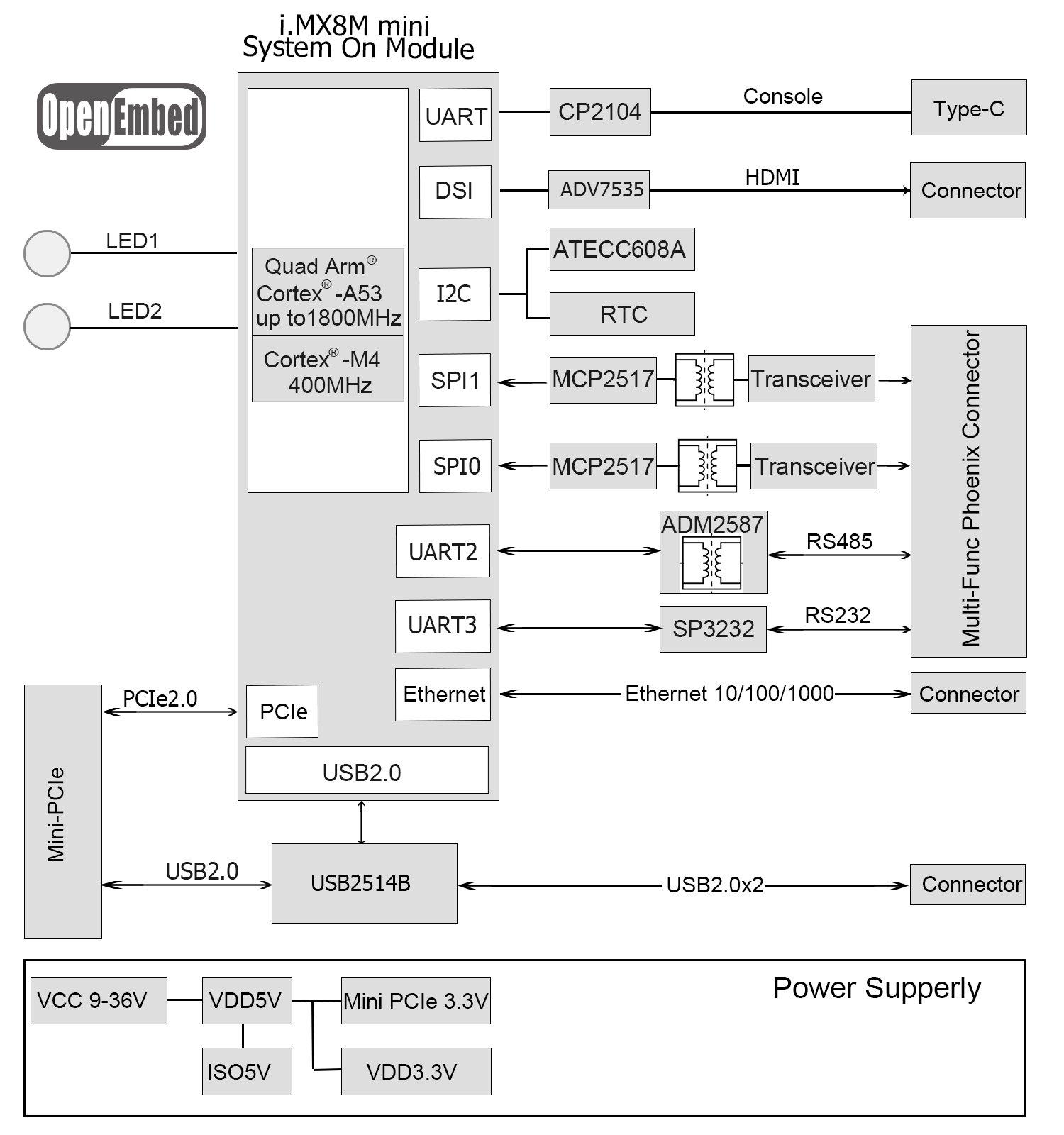

CPU

  • NXP i.MX8M mini,Quad-core A53 running up to 1800 MHz

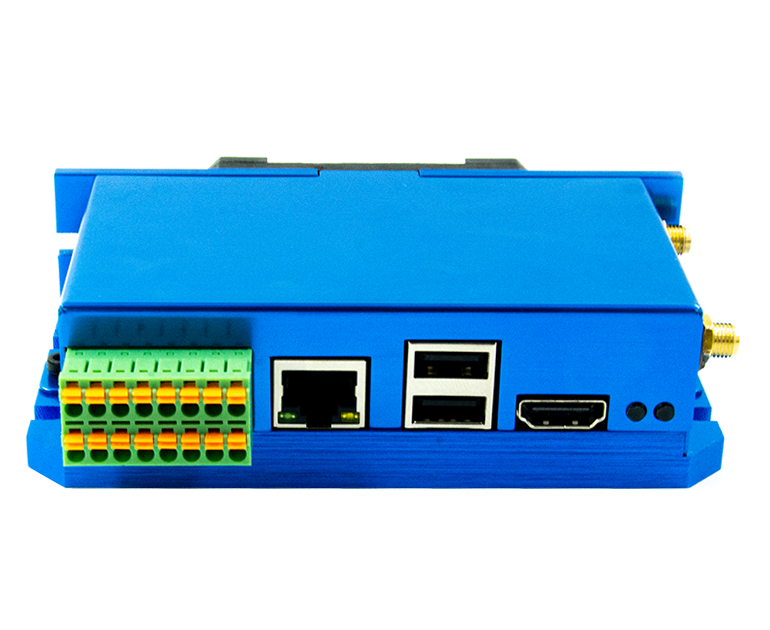

Interfaces

  • 1 × RJ45 ethernet port support 10/100M/1000M
  • 2 x USB 2.0 Port
  • 1 x HDMI
  • 2× CAN controllers supporting CAN FD protocol
  • 1 x isolated RS485
  • 1 x RS232
  • 1 x mini-PCIe socket with sim card and PCIe support
  • Wide power supply support 10.8-36V DC

Graphics and multimedia

  • 3D GPU: Supports  OpenGL ES 2.0, 1.1; H.264,H265 decode(1080p60);H.264 encode(1080p60)

Complicances

Software

All prices blow are specified in USD.

Prices are periodically updated according to variations in component costs. Prices are subject to change without advance notice.


P/N template: EdgeBox-SCALE-A-1GB-UART-CAN-RTC-WDT-Encryp

Where:

A: hardware edition

1GB: menory size

UART: Isolated RS485 + RS232

CAN: 2 x CAN FD Interfaces

RTC:Real time clock

WDT:Watch dog timer

Encryp : Encryption chip ATECC608A

Entry level configuration P/N: EdgeBox-SCALE-A-1GB-UART           PRICE: $99

Default configuration P/N:       EdgeBox-SCALE-A-2GB-UART           PRICE: $119

Full configuration P/N:              EdgeBox-SCALE-A-2GB-UART-CAN-RTC-WDT-Encryp         PRICE: $149

​===================================================================================

Note: The default configration of eMMC storage is 8GB.

           Customizations accepted,please contact  sales@OpenEmbed.com for other configrations.




Other Quantity Orders:

Pricing is specified for 100-unit orders.Multiply the unit price by the factor to calculate the price for another quantity :

Qty Factor
10K contact us
1K 0.85
500 0.9
100 1.0
10 1.2
1 1.5
