Rugged Fanless Edge System with Raspberry Pi Compute Module 3+(CM3+),proven,out-of-the-box controller for industry environment.It can be used to connect the field networks with cloud or IoT applications.

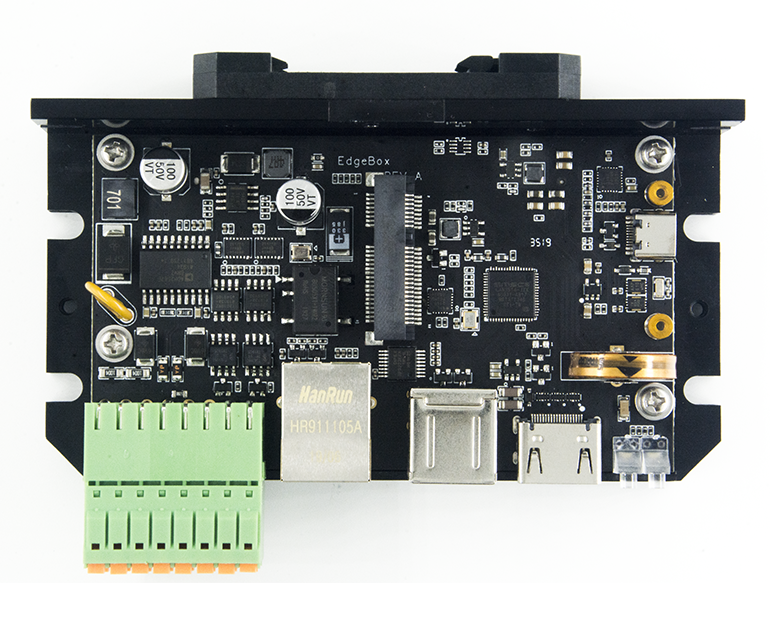

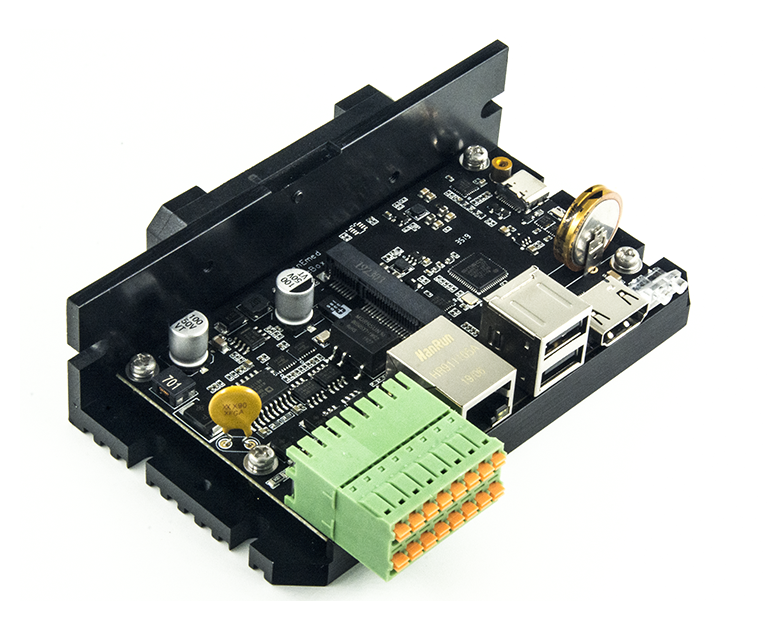

    The EdgeBox-RPI is fitted with the Raspberry Pi CM3+.It is designed for easy setup and quick deployment for typical industrial applications, such as status monitoring, facility management,digital signage and remote control of public utilities.Furthermore, it is a user-friendly gateway solution with 4 cores ARM Cortex A53 and most industry protocols can save on total deployment costs including electrical power cabling cost and help reduce the product’s deployment time. Its ultra-lightweight and compact design is the answer for applications in space-constricting environments ensures it can operate reliably in a variety of extreme environments including in-vehicle applications.

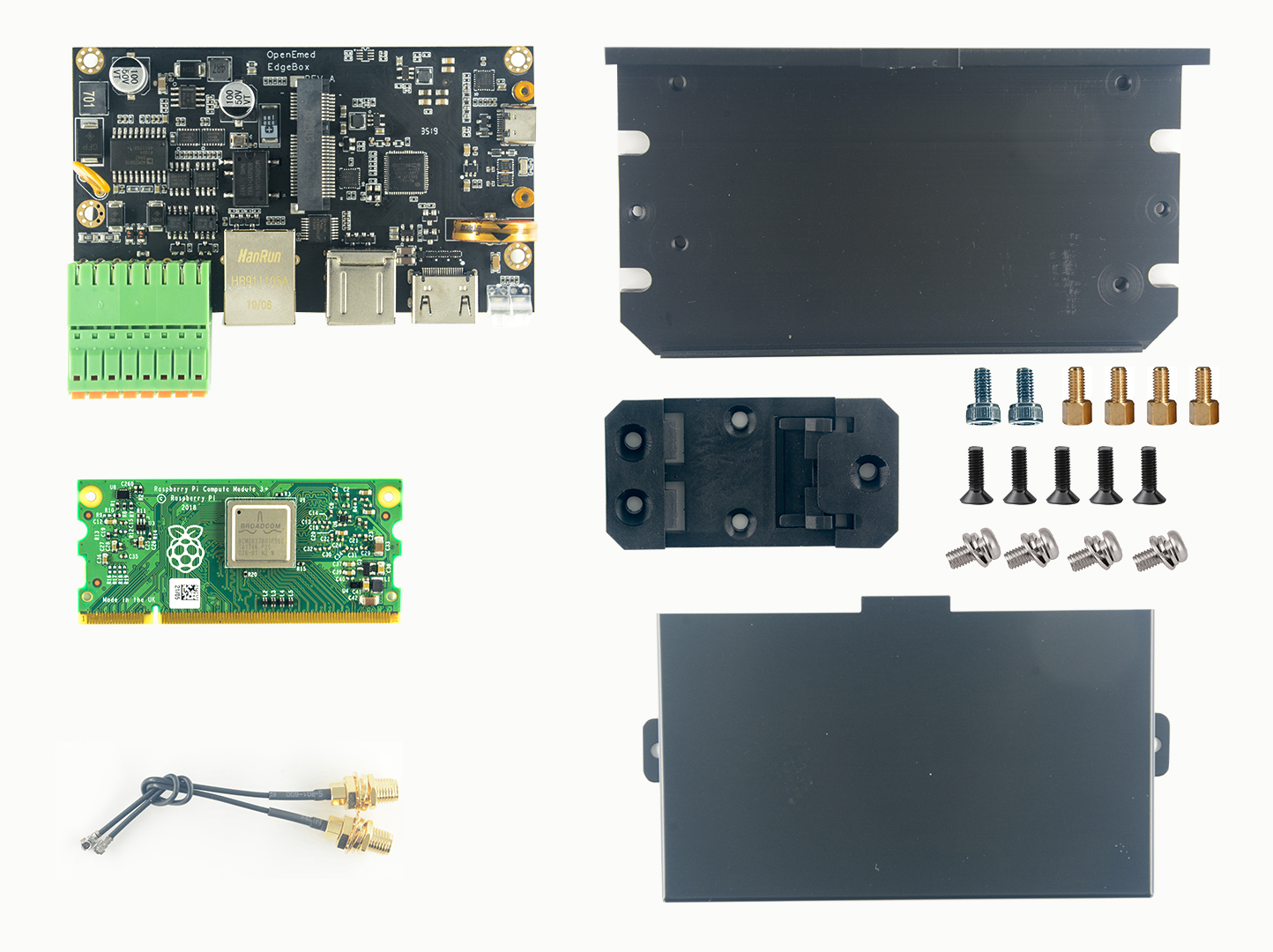

 Note: Product images are for illustration purposes only and maybe don't match what is currently being shipped.



  • Raspberry Pi CM3+ Based
  • State-of-the-art Aluminium chassis for Harsh environment
  • Integrated passive heatsink
  • Built-in mini PCIe socket for RF module, such as 4G, WI-FI,Bluetooth, lora or zigbee
  • SMA antenna holes x2
  • Modbus over RS485 or Ethernet support
  • CAN-FD inteface up to 5 Mbit/s for distributed I/O or motion control
  • Encryption chip ATECC608A
  • Hardware Watchdog
  • RTC with Super Capacitor
  • Wide power supply from 10.8 to 36V DC
  • 35mm DIN Rail support


  • Broadcom BCM2837B0,Quad-core A53 running up to 1200 MHz


  • 1 × RJ45 ethernet port support 10/100M
  • 2 x USB 2.0 Port
  • 1 x HDMI
  • 2× CAN controllers supporting CAN FD protocol
  • 1 x isolated RS485
  • 1 x RS232
  • 1 x mini-PCIe socket with sim card support
  • Wide power supply support 10.8-36V DC

Graphics and multimedia

  • 3D GPU: Supports  OpenGL ES 2.0, 1.1; H.264,MPEG4 decode(1080p30);H.264 encode(1080p30)

Operating temperature

  • -20° to 60°



Resource                              Version                                Date

EdgeBox-RPI_Brochure                                  1.0                                                         19-10-2019

EdgeBox-RPI UM(V1.1).pdf                          1.1                                                          19-11-2020

All prices below are specified in USD.

Prices are periodically updated according to variations in component costs. Prices are subject to change without advance notice.

P/N template: EdgeBox-RPI-A-UART-CAN-RTC-WDT-Encryp


A: hardware edition

UART: Isolated RS485 + RS232

CAN: 2 x Isolated CAN FD Interfaces

RTC:Real time clock

WDT:Watch dog timer

Encryp : Encryption chip ATECC608A

Entry level configuration P/N:     EdgeBox-RPI-A                  PRICE: $119

Default configuration P/N:           EdgeBox-RPI-A-UART      PRICE: $149

Full configuration P/N:                 EdgeBox-RPI-A-UART-CAN-RTC-WDT-Encryp   PRICE: $199


Note: The default configration of eMMC storage is 32GB.

            Customizations accepted,please contact  sales@OpenEmbed.com for other configrations.


Other Quantity Orders:

Pricing is specified for 100-unit orders.Multiply the unit price by the factor to calculate the price for another quantity :

Qty Factor
10K contact us
1K 0.85
500 0.9
100 1.0
10 1.2
1 1.5
